Aluminium Bifold Glass Doors – SL 60e

The SL 60e aluminium bifold glass door offers a huge range of installation options. Despite the fact that it more than fulfils the rigorous requirements of the German energy saving regulation, this folding glass door system comprises extremely slim frame sections, which serve to further underscore the minimalist streamlined design.

Technical information

  • Heat-insulated glass is used as standard glazing; Ug = 1.1 W/m²K (k = 1.0) with 2 x 4 mm Toughened Glass
  • Complete window system available to match folding door: Turn-and-tilt, parallel slide-and-tilt and fixed elements

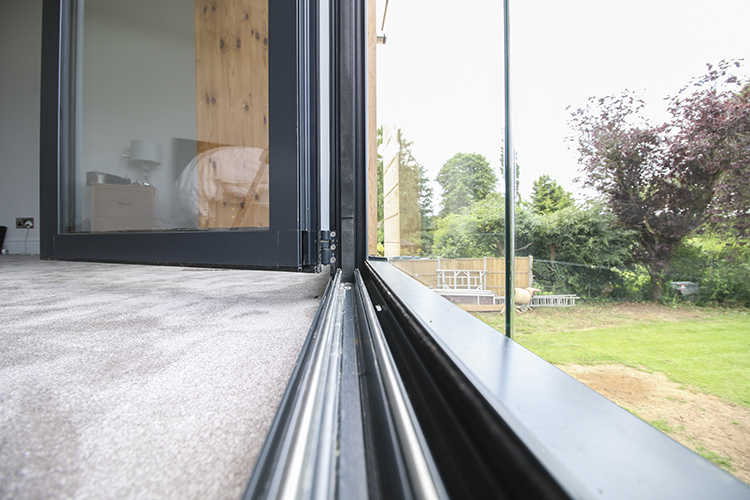

  • Flush Track available for barrier-free living
  • Low-friction running properties due to stainless steel rails and running gears
  • No visible signs of wear and tear after 10,000 operations
  • Pane constructions available from 5 to 40 mm
  • Uw = 1.4 W/m²K acc. to DIN EN ISO 10077-1:2000 based on 3-panel folding door, WxH 2700 x 2300 mm

Maximum panel sizes

  • 1000 x 3000 mm
  • 700 x 3000 mm
  • Panel weight up to 80 kg
  • Special sizes on request

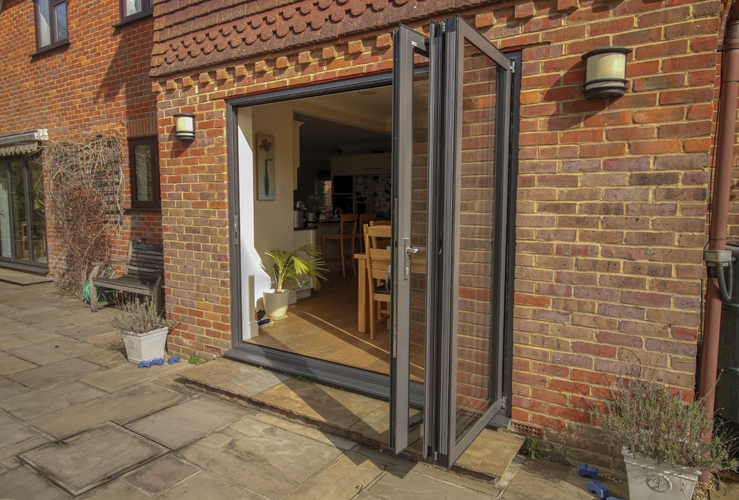

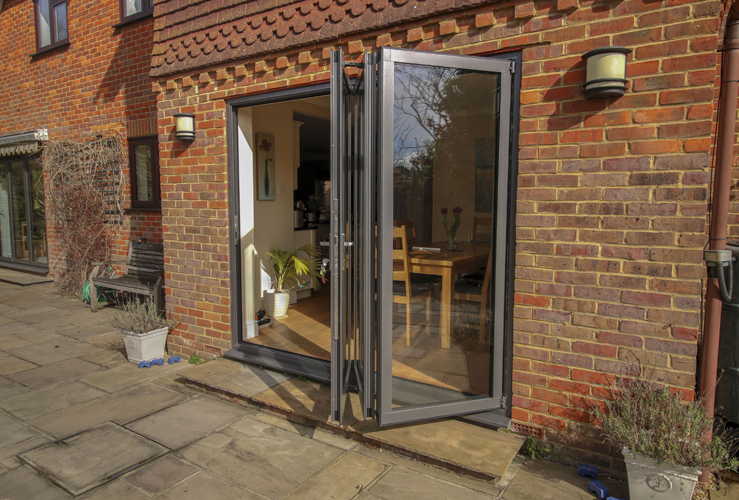

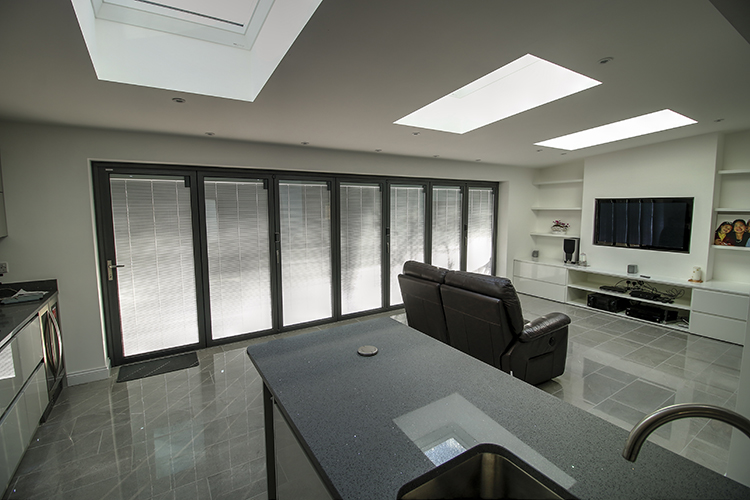

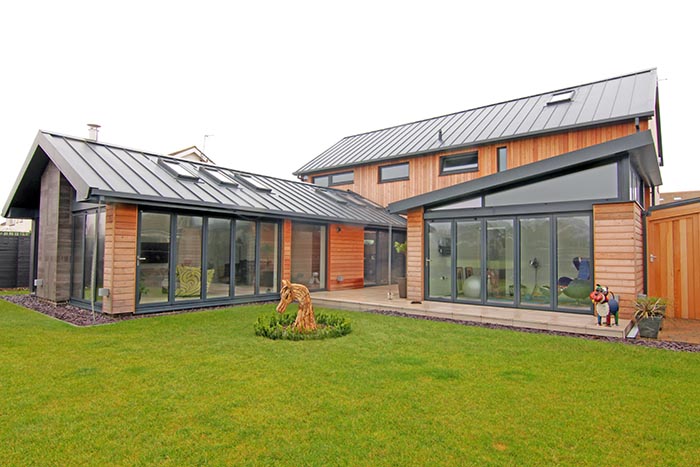

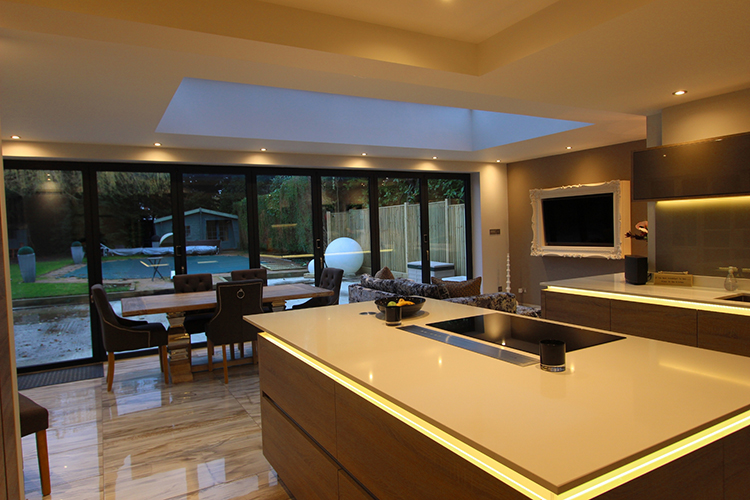

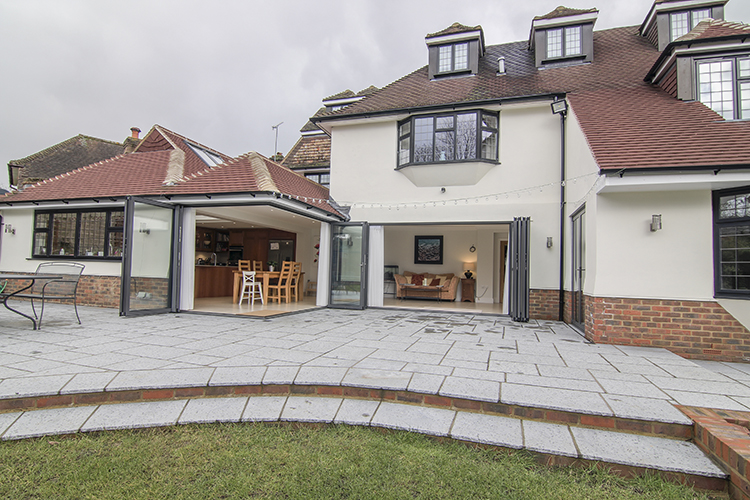

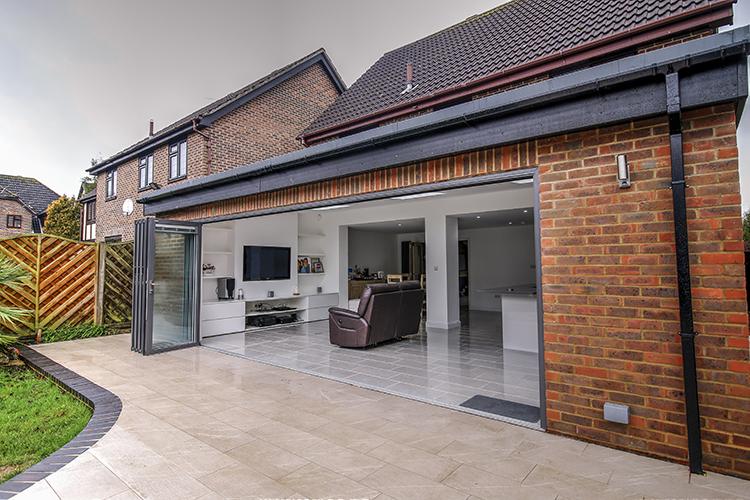

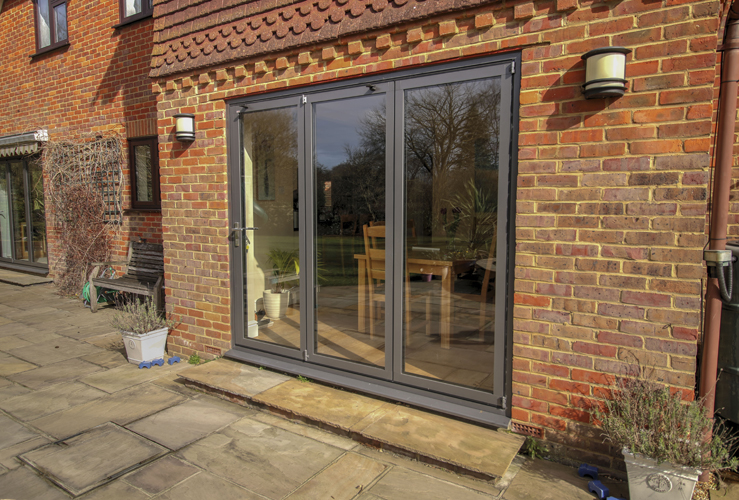

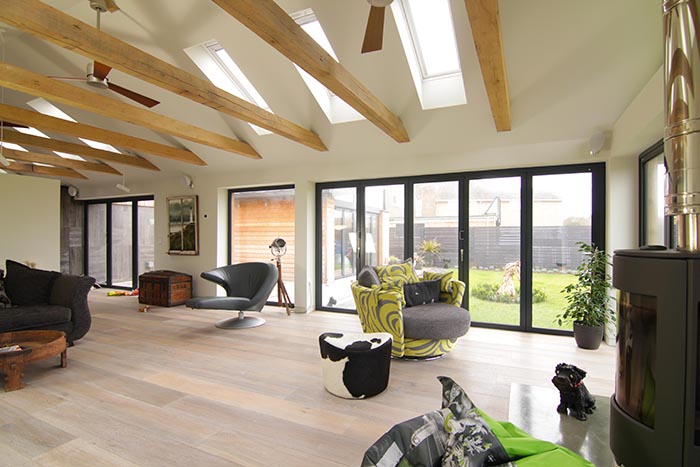

Recent Project Selection
