Solarlux Ecoline S & Highline S Sliding Door

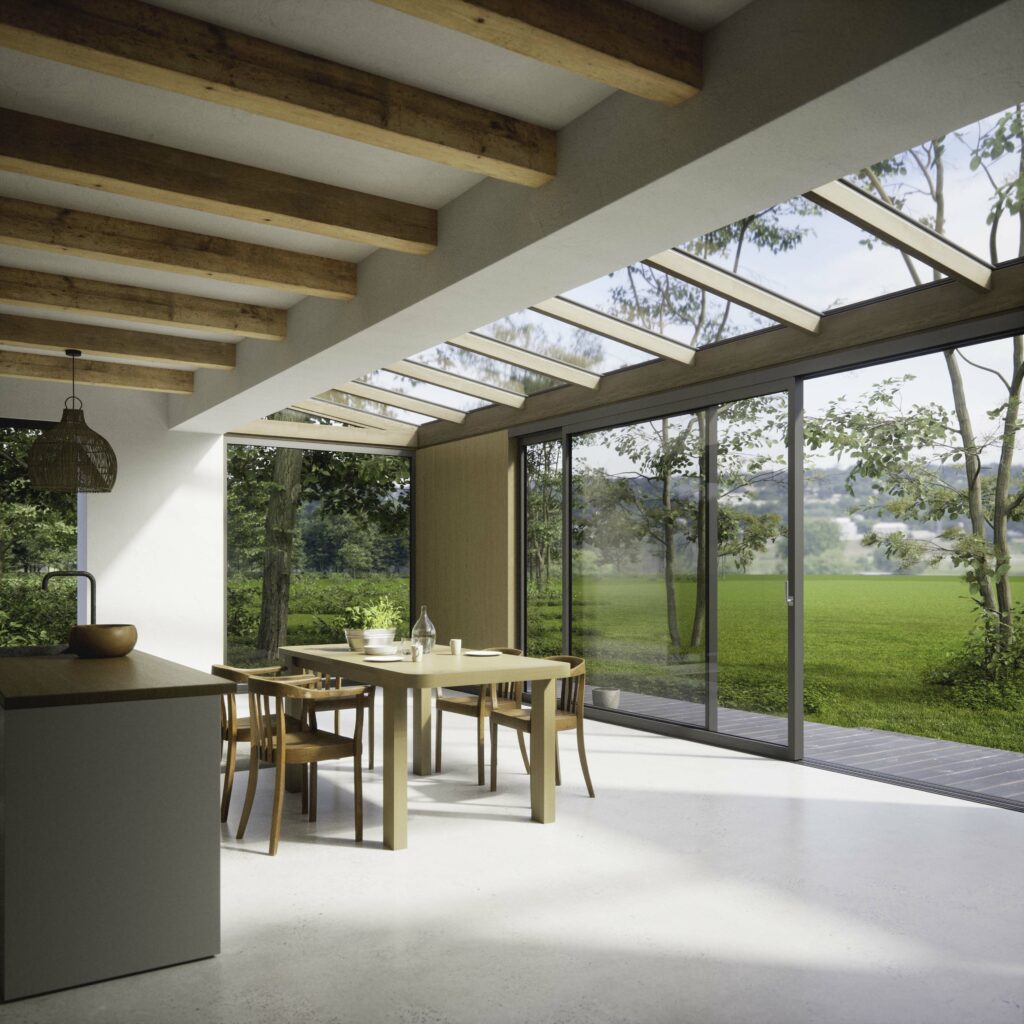

Solarlux has recently expanded its range of thermally insulated, straight-edged aluminium profile systems by introducing the Ecoline S and Highline S sliding doors. Both of these sliding doors offer uniform profile sight lines, and the sight line in the panel butt joint is a slender 55 mm with no visible fixtures in the forend profile strips.

Ecoline S Sliding Door

The Ecoline S sliding door has a maximum element size of 2.7 m wide x 2.5 m high. It achieves a Uw value of ≥ 1.4 W/m²K, thanks to Solarlux’s proprietary multi-functional break profile, the “Bionic TURTLE.” With an overall depth of 67 mm, it is available in one, two, or three-track sub-frames.

It also has an accessible floor track with built-in drainage. Three types of joint profiles are available for this model, which can all be matched to the existing floor level. Additionally, the system features the same stainless steel carriages used in the tried-and-tested cero sliding window range, with all the Solarlux expertise that comes with them. The smooth-running, sealed-bearing, tapered stainless steel rollers run on a stainless steel rail with a specially optimized shape to enable optimum load transfer, particularly for high panel weights.

Highline S Sliding Door

The Highline S sliding door has elements up to 3.2 m wide and 2.8 m high, offering incredible transparency and spectacular views. It also features Solarlux’s proprietary multi-functional, fibreglass-reinforced polyamide “bionic TURTLE” break profile and load-bearing, thermally insulated fitting panels.

These components have already been featured in Solarlux bi-folding doors and have proven to offer excellent thermal insulation.

The Highline S achieves a Uw value of ≥ 0.9 W/m²K with a building depth of 84 mm. The smooth-running, sealed-bearing, tapered stainless steel rollers run on a stainless steel rail with a specially optimised shape to enable optimum load transfer, particularly for high panel weights. It is available with one-, two-, or three-track subframes and boasts an accessible floor track with built-in drainage.

Technical information

• Highline S:  3200mm max. panel width x 2800 mm max. panel height
• Highline S: Overall panel depth (Highline): 84 mm
• Highline S:  standard glazing:50 mm heat-absorbing glass, Ug = 0.6 W/m2K (3 x 6 mm float), with warm edge
• Ecoline S: 2700mm max. panel width x 2500mm max. panel height
• Ecoline S: Overall panel depth (Ecoline): 67 mm
• Ecoline S: standard glazing:28 mm heat-absorbing glass, Ug = 1.1 W/m2K (2 x 6 mm float), with warm edge
• One, two or three-track sub-frame
• Lockable sliding panel for controlled trickle ventilation
• Sliding system as door element or as window element on balustrade
• Smooth-running, low-wear carriage fitted with double-row deep-groove ball bearings
• No visible signs of wear and tear after 10,000 operations

Solarlux’s Ecoline S and Highline S sliding doors have been meticulously designed to complement the company’s bi-folding doors and windows portfolio perfectly. These sliding doors offer uniform profile sight lines, which means that even the most intricate projects can be seamlessly integrated. The glass level of the sliding doors is perfectly aligned with connected elements such as windows and bi-folding doors, ensuring a smooth transition without any noticeable offset at the edge of the glass.

With just one profile family, the Ecoline S and Highline S sliding doors offer many possibilities, instilling confidence in their precision and performance.

Like all Solarlux doors, the Ecoline S and Highline S are a testament to the meticulous craftsmanship and attention to detail you’d expect from a German manufacturer, instilling a sense of assurance in their quality and durability.

The Ecoline S and Highline S sliding doors’ aluminium profile systems offer an unbroken and consistent profile sight line. The slim sight line of just 55mm in the panel butt joint is achieved through edged profiling.

From the robust stainless steel rollers to the soft close mechanism and the integrated brush that cleans the track with every door movement, the meticulous attention to detail sets apart premium Solarlux glazing systems.

By seamlessly blending aesthetics with functionality, the Ecoline S and Highline S open up innovative possibilities for building design. Their minimal frame, large glass panels, and structural strength are catalysts for architects and builders, inspiring them to transcend the limits of their creativity and explore new design horizons.
