Aluminium Bifold Glass Doors – SL 60e

The SL 60e aluminium bifold glass door offers many installation options. Although it more than fulfils the rigorous requirements of the German energy-saving regulation, this folding glass door system comprises extremely slim frame sections, which further underscore the minimalist, streamlined design.

Technical information

  • Heat-insulated glass is used as standard glazing; Ug = 1.1 W/m²K (k = 1.0) with 2 x 4 mm Toughened Glass
  • Complete window system available to match folding door: Turn-and-tilt, parallel slide-and-tilt and fixed elements

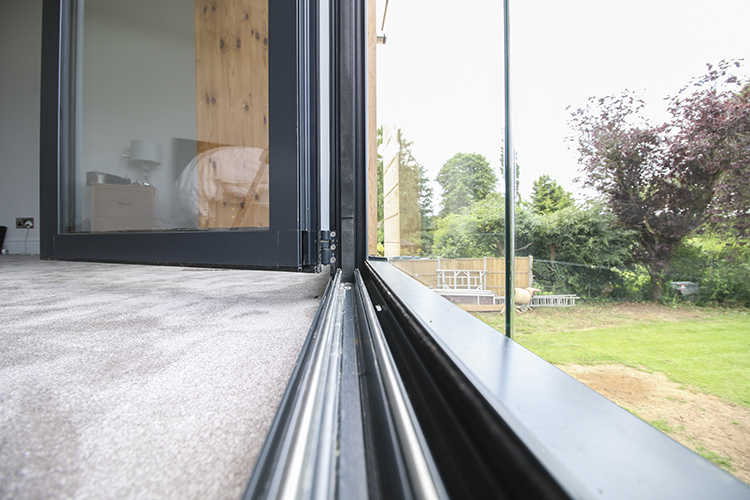

  • Flush Track available for barrier-free living
  • Low-friction running properties due to stainless steel rails and running gears
  • No visible signs of wear and tear after 10,000 operations
  • Pane constructions available from 5 to 40 mm
  • Uw = 1.4 W/m²K acc. to DIN EN ISO 10077-1:2000 based on 3-panel folding door, WxH 2700 x 2300 mm

Maximum panel sizes

  • 1000 x 3000 mm
  • 700 x 3000 mm
  • Panel weight up to 80 kg
  • Special sizes on request

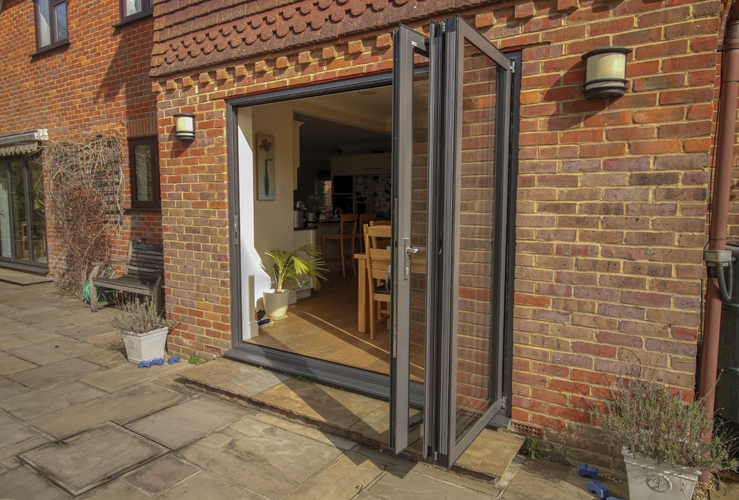

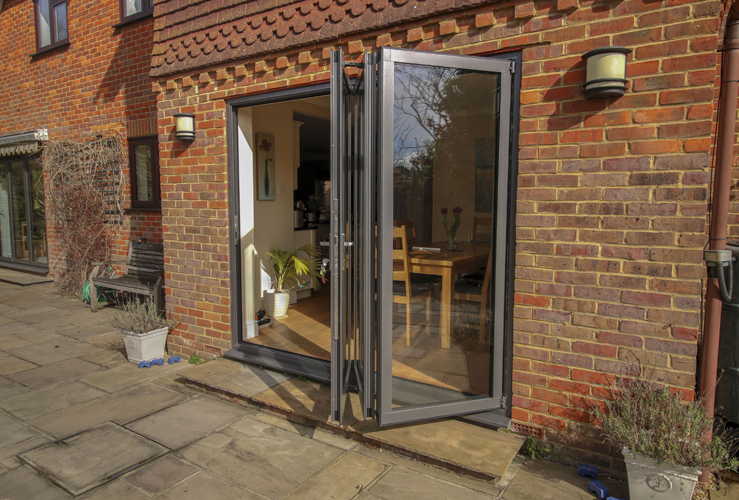

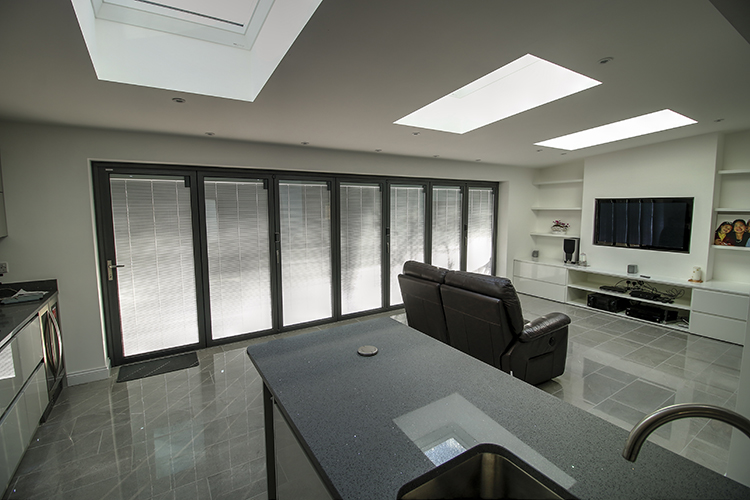

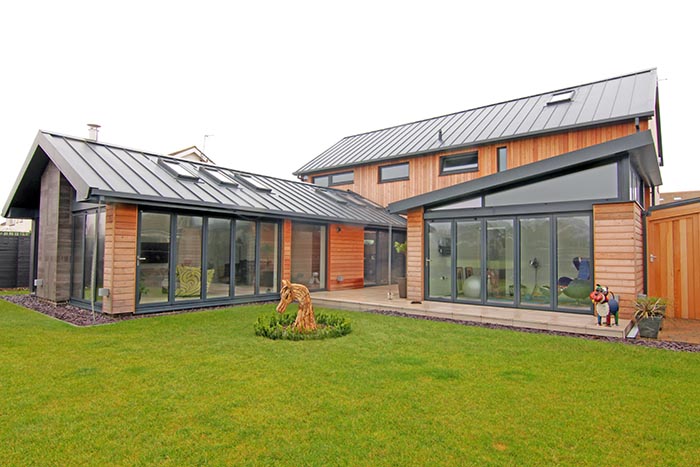

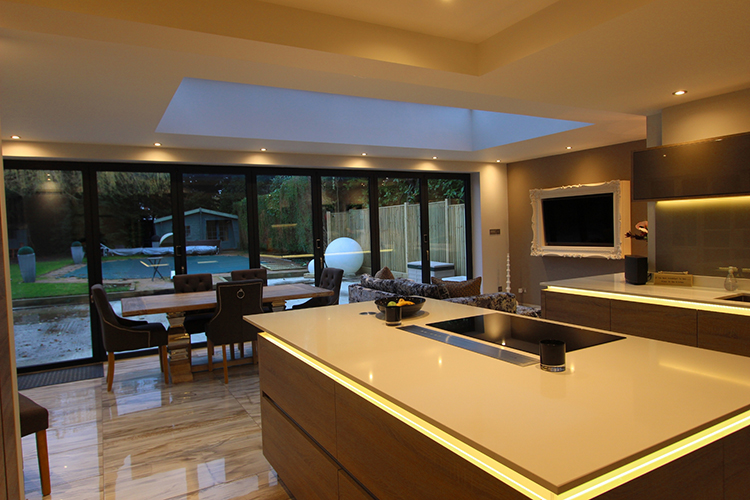

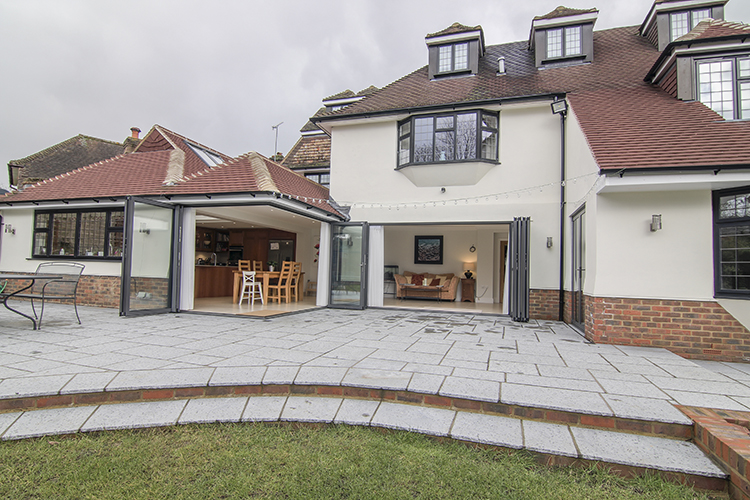

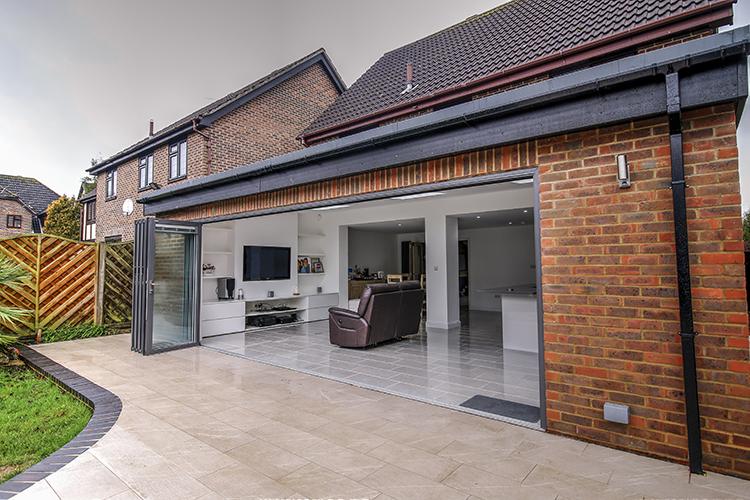

Recent Project Selection
